• 4-Wheel Antilock Brake Sys
• Fordpass Connect 5Gwi-Fi Hotspot Telematics Modem
• Hill Start Assist
• Remote Keyless Entry
• Stabilizer Bar, Front/Rear

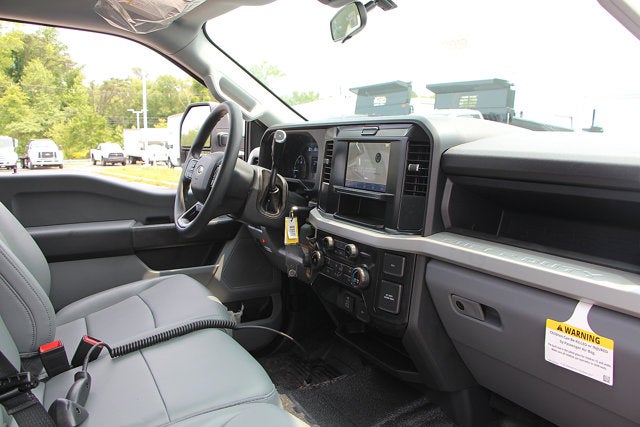

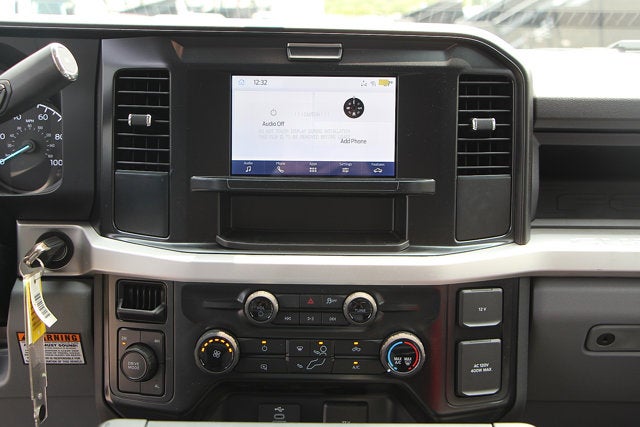

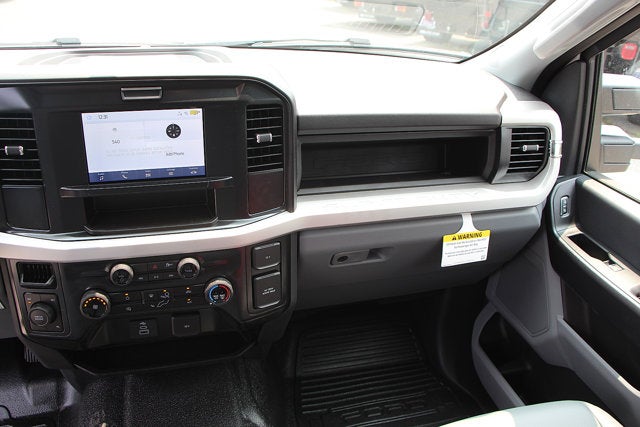

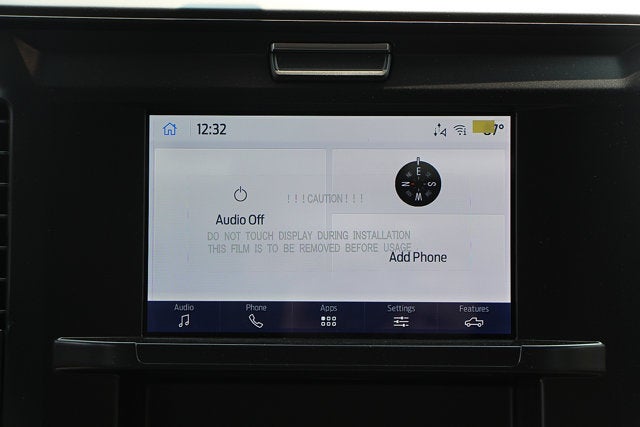

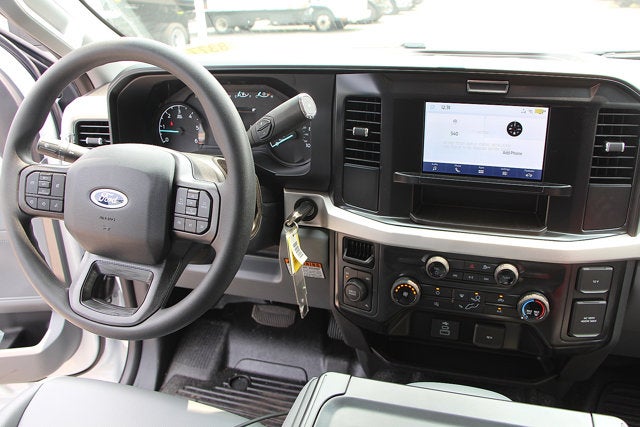

• Sync4 W/8" Screen

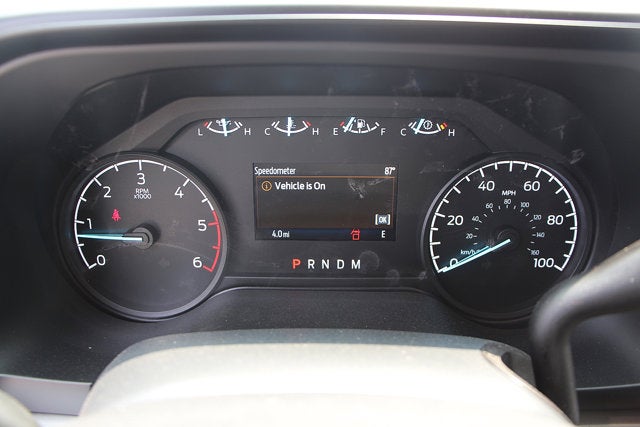

• 4.2" Productivity Screen

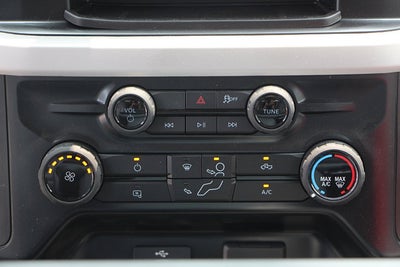

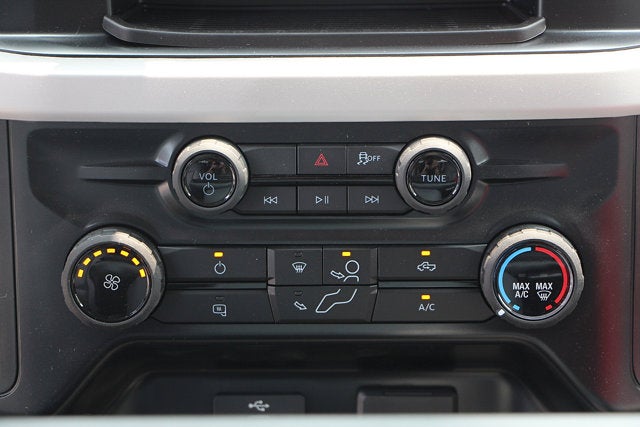

• Air Cond, Manual Front
• Black Vinyl Floor Covering
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows

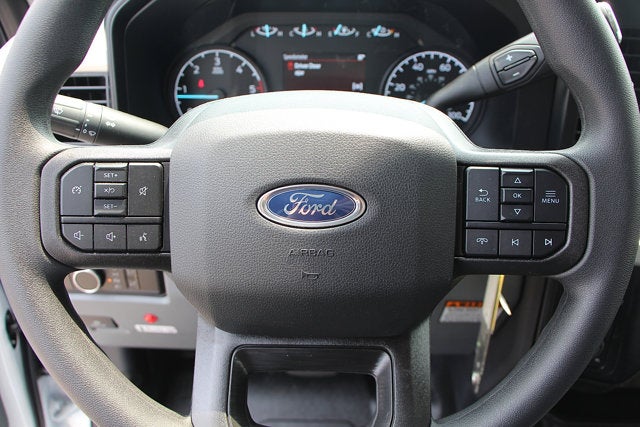

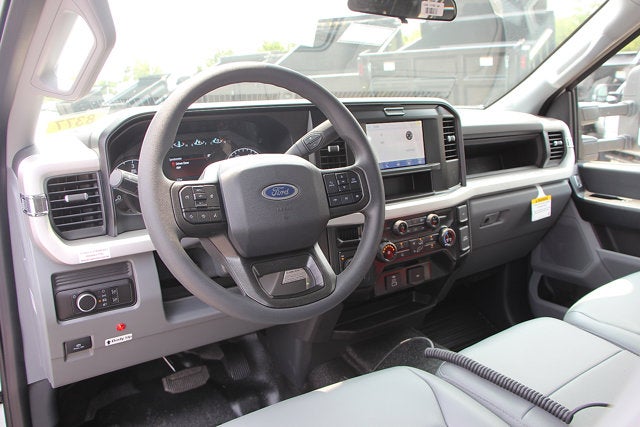

• Steering:Tilt/Telescope, Cruise & Audio Controls
• Upfitter Switches

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Secure Pkg 1 Yr Included
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys

Payload Plus Upgrade Package 2

Power Equipment Group

660A

Snow Plow Prep Package

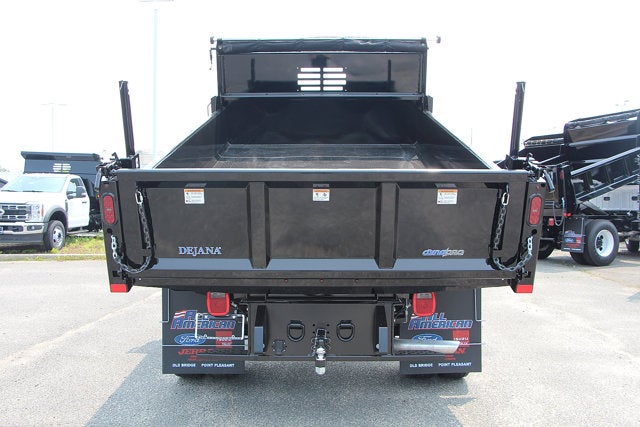

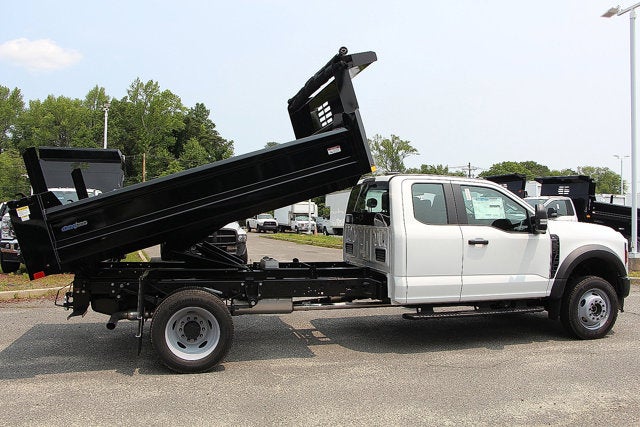

• Z1 A S 660A 572 99N 44G TGK X8L ZZ1 153 18B 41H 425 43C 473 52S 60X 61J 61L 65Z 67B 68H 76C 86M 872 ZZ2 ZZ3 A1 DEJANA

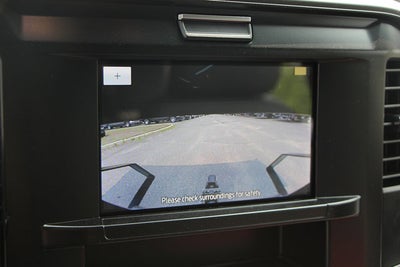

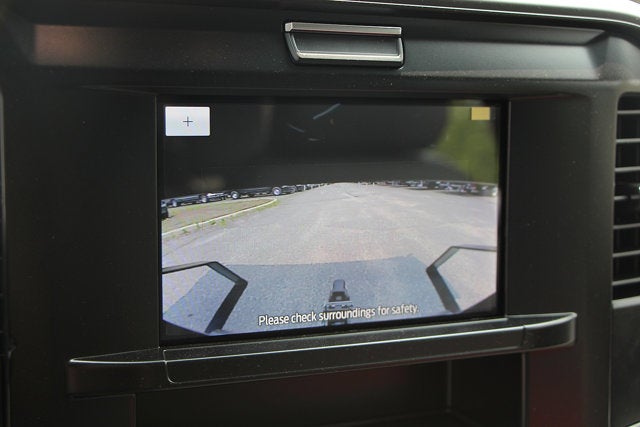

• REAR VIEW CAMERA & PREP KIT -inc: Pre-installed content includes cab wiring and frame wiring to the rear most cross member Upfitters kit includes camera w/mounting bracket 20' jumper wire and camera mounting/aiming instructions
• ENGINE: 7.3L 2V DEVCT NA PFI V8 GAS (STD)
• 410 AMP DUAL ALTERNATORS -inc: 250 Amp + 160 Amp
• GVWR: 19 550 LB PAYLOAD PLUS UPGRADE PACKAGE 2 -inc: upgraded frame upgraded rear-axle and low deflection/high capacity rear springs Increases max RGAWR to 14 706 lbs Note: See Order Guide Supplemental Reference for further details on GVWR

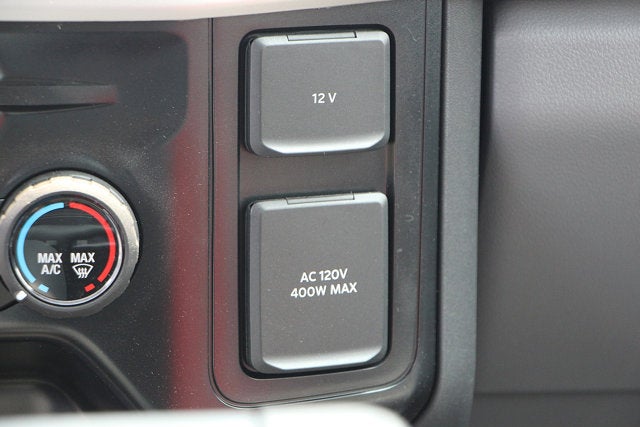

• 120V/400W OUTLET -inc: 1 in-dash mounted outlet
• EXTERIOR BACKUP ALARM (PRE-INSTALLED)
• Light Ice Blue Clearcoat Metallic
• 4.88 Limited Slip Axle Ratio
• Oxford White
• TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: SelectShift selectable drive modes: normal tow/haul eco slippery roads and off-road and transmission power take-off provision (STD)
• Platform Running Boards
• FRONT WHEEL WELL LINERS (PRE-INSTALLED)
• Hydraulic 6-Ton Jack
• AUTOMATED EMERGENCY BRAKING (AEB) REMOVAL -inc: Removes Pre-Collision Assist w/Automated Emergency Barking (AEB) and forward collision warning auto high beams post impact braking and audible lane departure warning
• DUAL 68 AH/65 AGM BATTERY
• SNOW PLOW PREP PACKAGE -inc: pre-selected springs (see order guide supplemental reference for springs/FGAWR of specific vehicle configurations) Note 1: Restrictions apply; see supplemental reference or body builders layout book for details Note 2: Also allows for the attachment of a winch Note 3: Highly recommended to add (86M) dual battery on 7.3L gas engine Adding (67B) 410 amp dual alternators for diesel engine is highly recommended for max power output

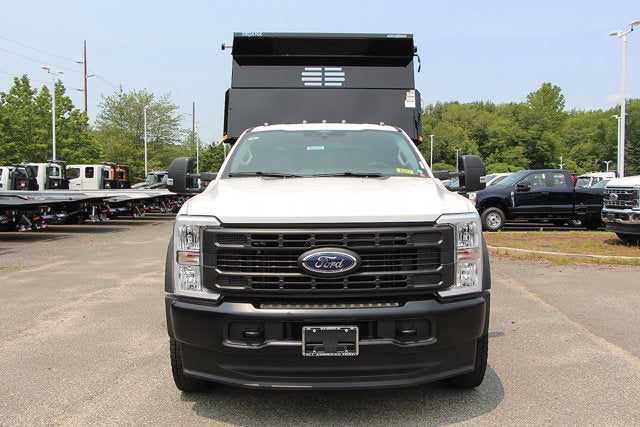

• Front License Plate Bracket

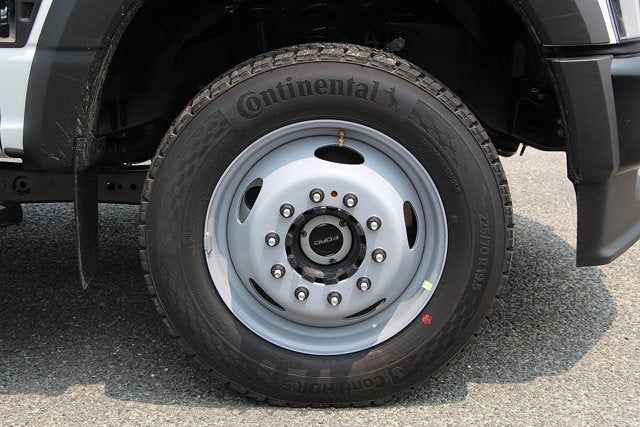

• TIRES: 225/70RX19.5G BSW TRACTION (TGK) -inc: 4 traction tires on the rear and 2 traction tires on the front Not recommended for over the road applications; could incur irregular front tire wear and/or NVH
• Equipment Group 600A
• INTERIOR WORK SURFACE

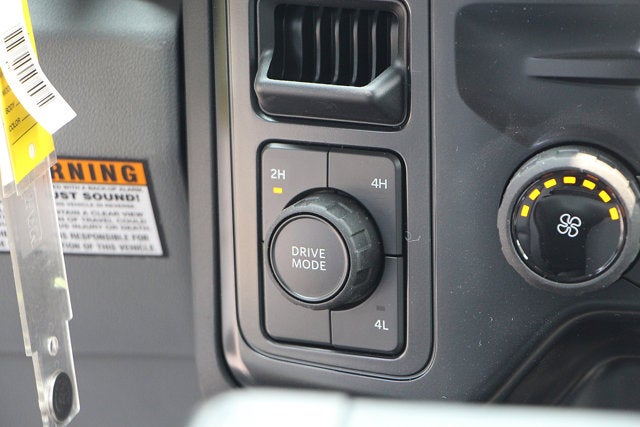

• Four Wheel Drive
• Power Steering

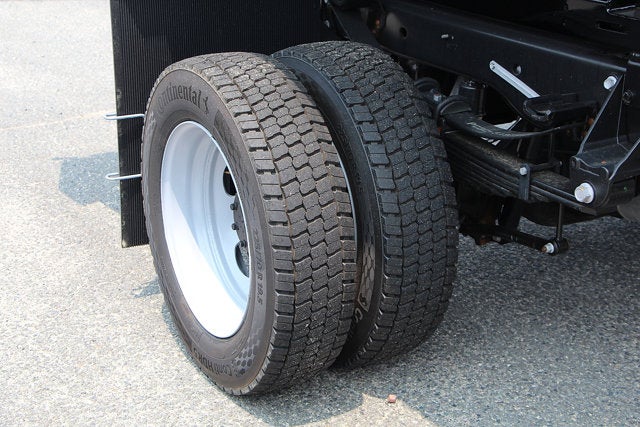

• Dual Rear Wheels
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Steering Wheel Audio Controls
• Auxiliary Audio Input

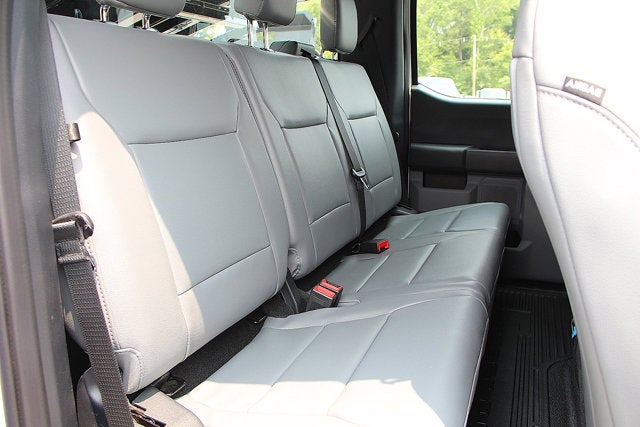

• Pass-Through Rear Seat

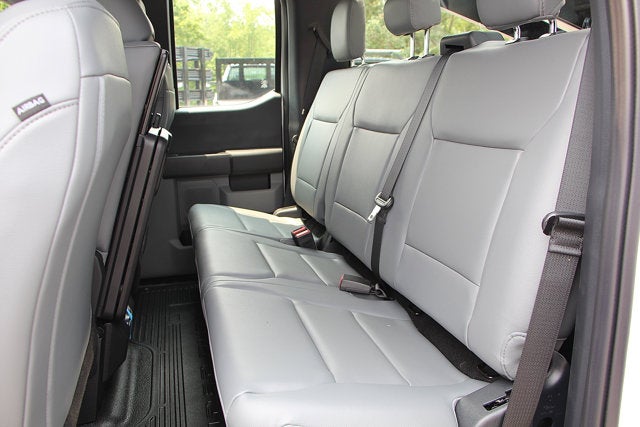

• Rear Bench Seat
• Adjustable Steering Wheel
• WiFi Hotspot
• Keyless Entry
• Cruise Control
• A/C
• Vinyl Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Vanity Mirror
• Security System
• Immobilizer
• Traction Control
• Front Side Air Bag
• Front Collision Mitigation
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Head Air Bag
• Rear Head Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 250 & 160
• Weight Information
• Base Curb Weight (lbs): 7298
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 13660
• Curb Weight - Front (lbs): 4121
• Curb Weight - Rear (lbs): 3177
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Gross Combined Wt Rating (lbs): 30000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1850
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5325
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 13660
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.4
• Rear Brake Rotor Diam x Thickness (in): 15.8
• Tires
• Front Tire Order Code: TGJ
• Rear Tire Order Code: TGJ
• Front Tire Size: LT225/70SR19.5
• Rear Tire Size: LT225/70SR19.5
• Front Tire Capacity (lbs): 7500
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: 647
• Revolutions/Mile @ 45 mph - Rear: 647
• Wheels
• Front Wheel Size (in): 19.5 X 6
• Rear Wheel Size (in): 19.5 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 48.1
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 168
• Length, Overall (in): 253.3
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 82.5
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Cab to Axle (in): 60
• Cab to End of Frame (in): 107.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 33.5
• Second Shoulder Room (in): 65.8
• Second Hip Room (in): 64.7
• Summary

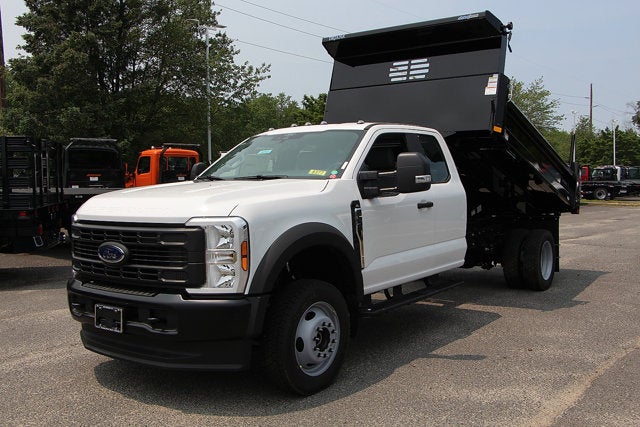

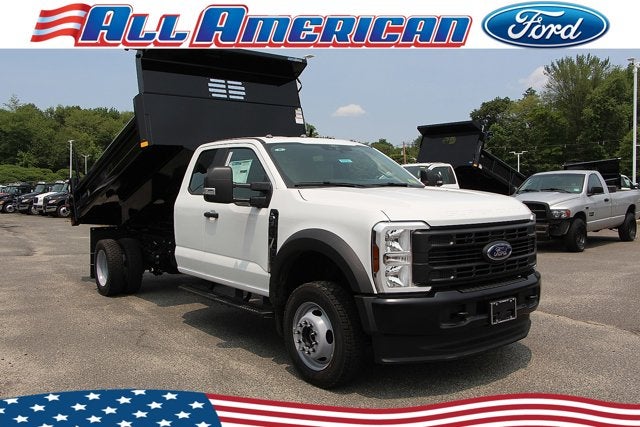

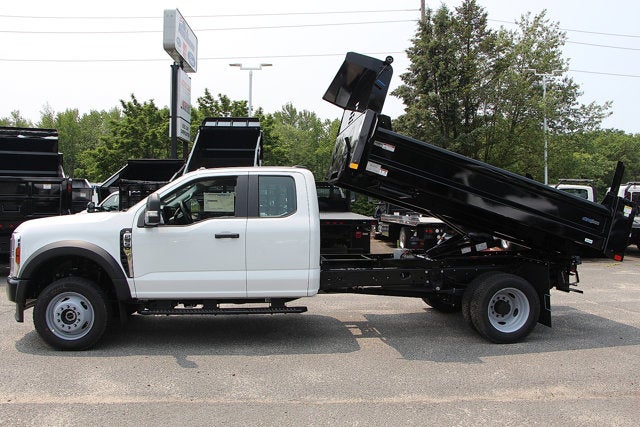

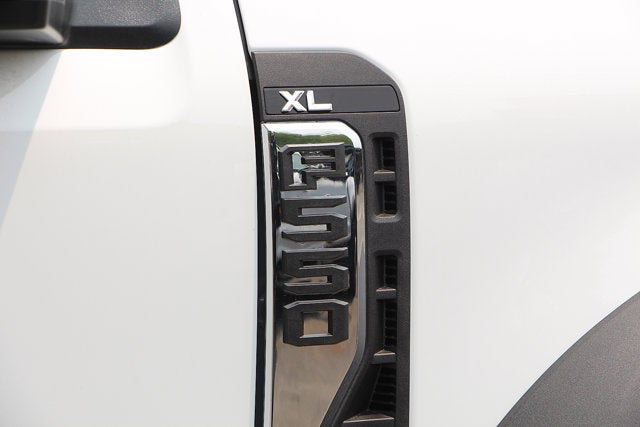

• Vehicle Name: Ford Super Duty F-550 DRW
• Body Style: SD Super Cab
• Body Code: H
